Blue light filter selection is complicated. A blue filter may help you with many problems: computer eye strain (computer vision syndrome), LED & fluorescent light sensitivity, sleep disorder, age-related macular degeneration (AMD), light sensitivity (discomfort glare), visual acuity… But not every blue filter will produce optimal results given the specifics of your blue light sensitivity problem. The chaos of hype marketing terminology often hides more than it reveals which further complicates the selection process. Read on to find out: which wavelengths your blue filter should absorb/block, by how much, how to compare bluelight filters…

The two simple rules for your blue filter selection proposed below are principally derived from two properties of human vision system:

(1) Macular pigment spectral absorption curve; for problems related to (blue) light sensitivity, glare and glare-related (computer) eye strain

(2) Spectral sensitivity curve of melanopsin; for sleep disorders

The two properties are first explained to derive the decision criteria. Then several blue filters are evaluated.



Blue filter terminology

To filter, block or absorb light are used interchangeably as synonyms to denote the proportion of light not transmitted (passed) through a filter.

If a filter transmits x% (e.g. 40%) of light, it filters/blocks/absorbs 100%-x% (e.g. 100%-40%=60%). Conversely, if a filter blocks/filters/absorbs y% (e.g. 20%) of light, its transmission is 100%-y% (e.g. 100%-20%=80%).




Disclaimer: My interest in blue light is due to my problems with light sensitivity (photophobia), discomfort glare, and computer eye strain. I am not a vision scientist.

Disclosure: I would like you to know that if you use some of the links below and purchase a product I earn a small commission at no additional cost to you. If you wish to support GLARminY, use the links containing text: Disclosure: commission link. You may alsogive” a small percentage of anything you might buy from Amazon by accessing Amazon through this link (Disclosure: commission link) at any other time. Thanks for your help.




The science on blue filter effects

This section draws principally from two scientific papers:

To avoid repetition citations to these two reports (but not others) are avoided.



(1) Blue filter vs. light sensitivity, AMD, glare, glare related (computer) eye strain…

Light avoidance or pain (discomfort) we feel in excessive brightness is our protective mechanism against light damage, particularly AMD. Within the visible part of the electromagnetic spectrum (wavelengths from about 400nm to about 700nm) the principle “troublemaker” is short wavelength light (violet and blue light) from about 400nm to about 500nm. It is usually referred to simply as blue light.

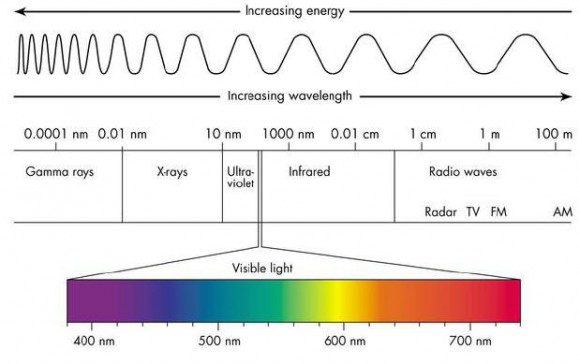

blue filter - visible spectrum and energy



Detrimental properties of blue light

When compared to longer visible wavelengths blue light:

  • carries considerably more energy such that it can penetrate deeper into the eye and cause tissue damage at lower light intensity levels
  • degrades vision through greater scattering and aberrations thus leading to glare disability and discomfort glare at lower light intensity levels



Macular pigment: Our natural blue filter

The natural countermeasure to these undesirable effects of blue light are two intraocular blue filters. The crystalline lens shields entire retina from most of the light below 400nm (violet and UV light). Its absorptive capacity falls sharply to near 0 by about 450nm.

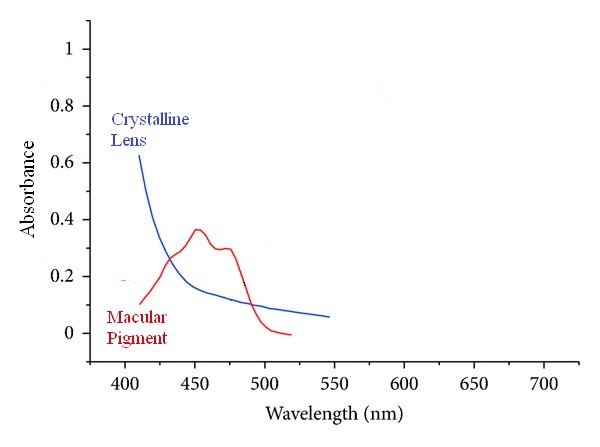

blue filter - crystalline lens and macular pigment absorption curves

Our natural, intraocular blue filters: Macular pigment and Crystalline lens spectral absorption curves. Adapted from (The visual effects of intraocular colored filters; 2012).



The second blue filter is more interesting from the perspective of blue light sensitivity. Macular pigment protects only the macula, a tiny area (about 1%) of the retina, where our vision is sharpest and where our retina is by far the most sensitive to light induced pain. A healthy macular pigment peak absorption is ~460nm and filters blue light considerably from  ~440nm to ~480nm.  Outside these boundaries its absorption relatively quickly drops to 0 (see image above).

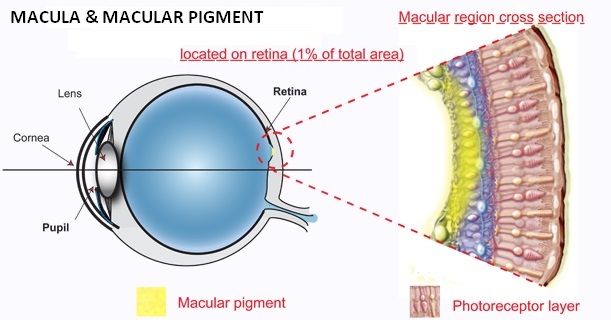

blue filter - macular pigment eye anatomy



In summary, our retina’s most critical and also most vulnerable part – the macula – should be sufficiently protected from blue light around 460nm ±20nm. But…



Macular pigment deficiency

If you are having problems with (blue) light sensitivity your Macular Pigment Optical Density (MPOD) – its blue light absorption effectiveness – may be too low, principally due to diet.



Macular pigment advantages over an external blue filter

An external blue filter is an obvious solution to low MPOD. It brings several benefits: reduction of intraocular scatter, lowering of glare discomfort (photophobia) threshold, improved photostress recovery and glare disability.

However, a major drawback to external blue filters is the loss of input to photoreceptors (they have less light to “work with”) which may be critical in low-light conditions. Macular pigment covers only the photoreceptors for day vision (bright conditions) at the macula (principally long wave – L and medium wave – M cones). Conversely, an external blue filter shields all of the retina, including the photoreceptors (rods) for vision in low-light conditions, which are most sensitive in the upper blue light and green range (~440nm to ~540nm).

Hence unlike macular pigment an external blue filter considerably reduces input to night vision photoreceptors. This is the principle reason why tinted lenses/glasses are discouraged for night driving. It is also why improving your macular pigment through diet (or dietary supplementation) is the preferred solution over a longer run.



A good external blue filter should simultaneously maximize visual light transmission while minimizing blue light transmission

A recently patented Wertheim Factor summarizes well all of the above. It was invented to facilitate blue filters comparisons. Wertheim Factor represents the fraction of the damaging high-energy spectrum blocked by a filter compared to the visible transmission of the filter. The resulting figure ranges from 0 to about 0.5. A high Wertheim Factor indicates a filter that blocks well in the UV-violet-blue range while also transmitting well in the green-yellow-red range that is most easy to see and least damaging to the photoreceptors.

Unfortunately there is currently only one vendor – Reading Glasses ETC (Disclosure: commission link) – that supplies Wertheim Factor data for their blue filter lenses.



(2) Blue filter vs. sleep disorder

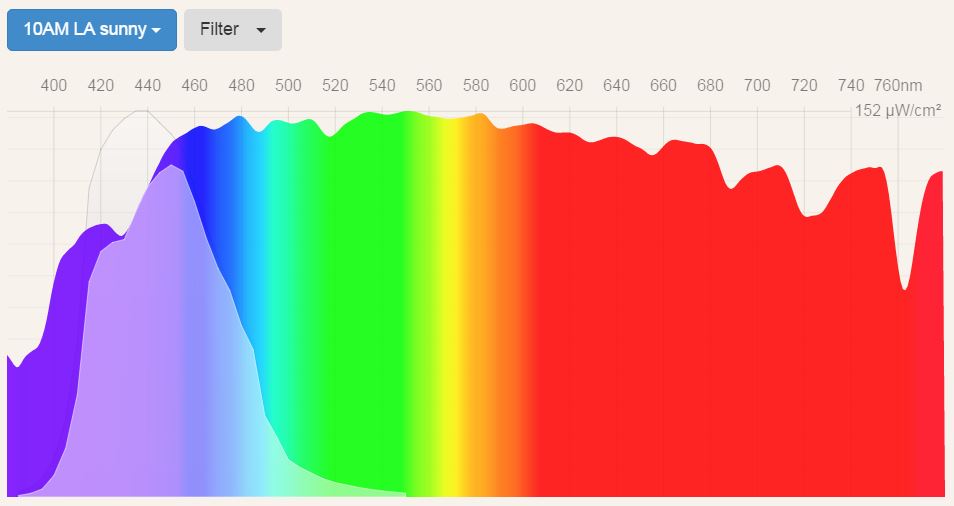

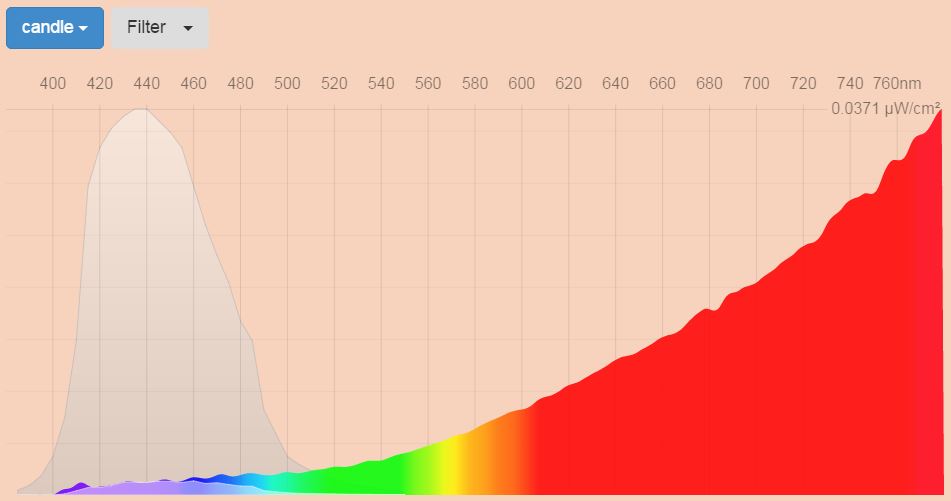

If your blue light related problem is sleep, than your blue filter decision criteria will be slightly different. Blue light is used by our brain to adapt our sleep-wake cycle to day-night cycle (for more info, view explaination by a leading scientist). Until very recently in men’s evolution this worked reasonably well, because sun’s light was the only source of intense light, blue light in particular – see below. (The only environments that did not facilitate sleep of sufficient length and quality were areas far from the equator with late sunsets and early sunrises in summertime).

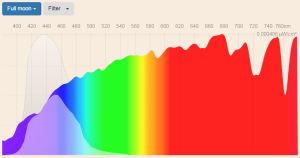

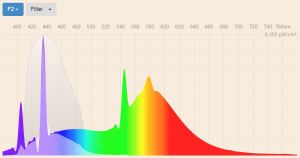

Source: Fluxometer

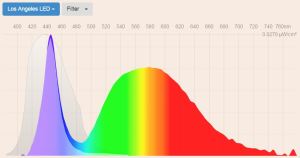

However, the developed world has become less sleep-friendly due to the widespread adoption of light sources with relatively high blue light intensity. Light-emitting diode (LED) and fluorescent bulbs have become very common light sources, some of them with very high blue light content (Levels of visual stress in proficient readers: Effects of spectral filtering of fluorescent lighting on reading discomfort; 2015). Moreover, in the evenings, just before bedtime, we increasingly use LED digital display devices: computers, TVs, smartphones, tablets… (Blue blocker glasses as a countermeasure for alerting effects of evening light-emitting diode screen exposure in male teenagers; 2015. Protective effect of blue-light shield eyewear for adults against light pollution from self-luminous devices used at night; 2016).

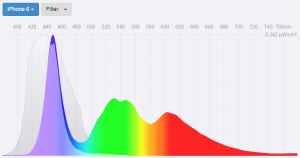

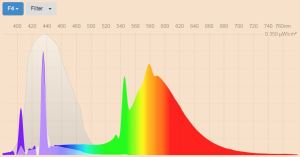

Source: Fluxometer

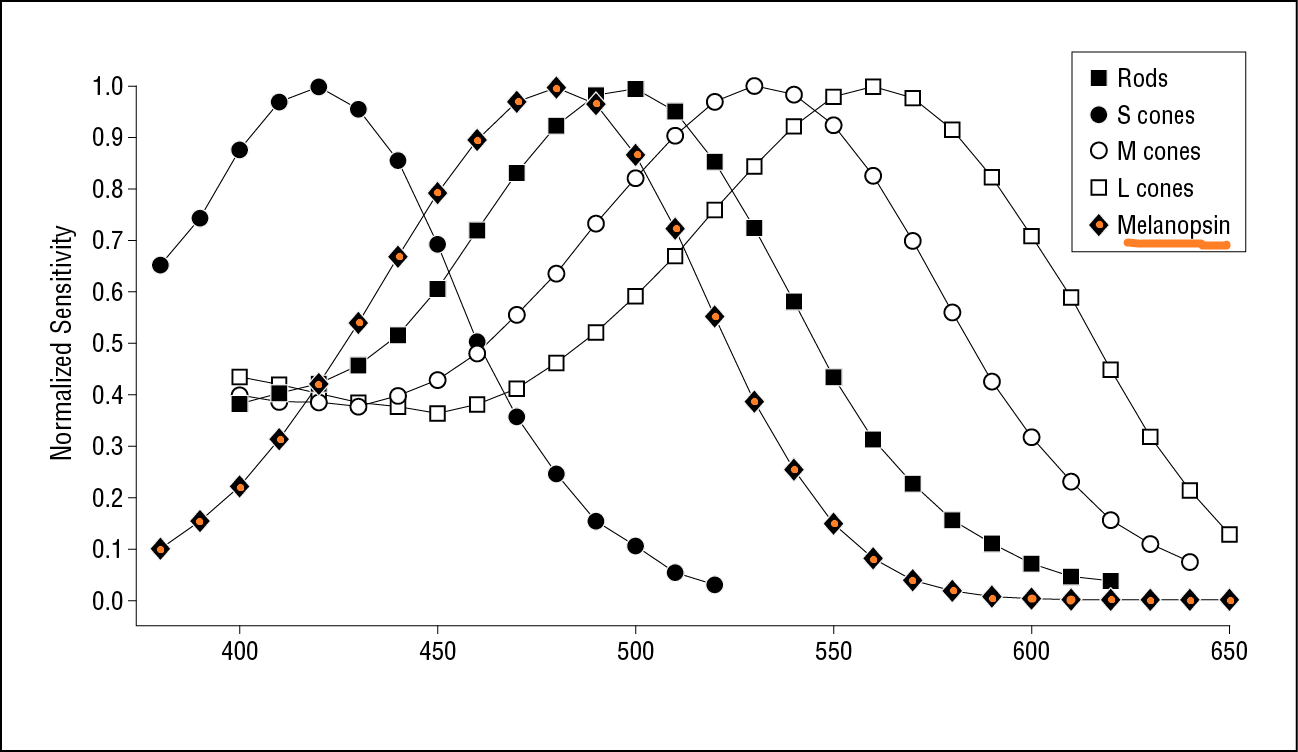

As shown below the sensitivity of melanopsin (the receptor of non-visual information related to sleep/wake cycle) peaks around 480nm, is high between ~430nm and ~520nm and practically 0 above 550nm. Filtering blue light up to these wavelengths should help you go to sleep faster (if you are an evening type) or sleep longer (if you are a morning type).



Summary: Two simple blue filter rules



(1) Blue filter vs. light sensitivity (AMD, glare and glare associated eye strain):

Block sufficiently (depending on your sensitivity) wavelengths near 460nm (±20nm)



(2) Blue filter vs. sleep disorder:

Block sufficiently (depending on your sensitivity) wavelengths near 480nm (±40nm); (Use only 2-4 hours before bed time. Such blue filter will considerably reduce your low-light vision – see spectral sensitivity of Rods above).



Using the same blue filter for light sensitivity as for sleep disorder might be an overkill.

Similarly, a 0% blue light transmission (blocks 100% of blue light) up to a certain wavelength might be an overkill – unless you’ve determined you have highly blue light sensitive eyes.




Blue filters evaluated and compared

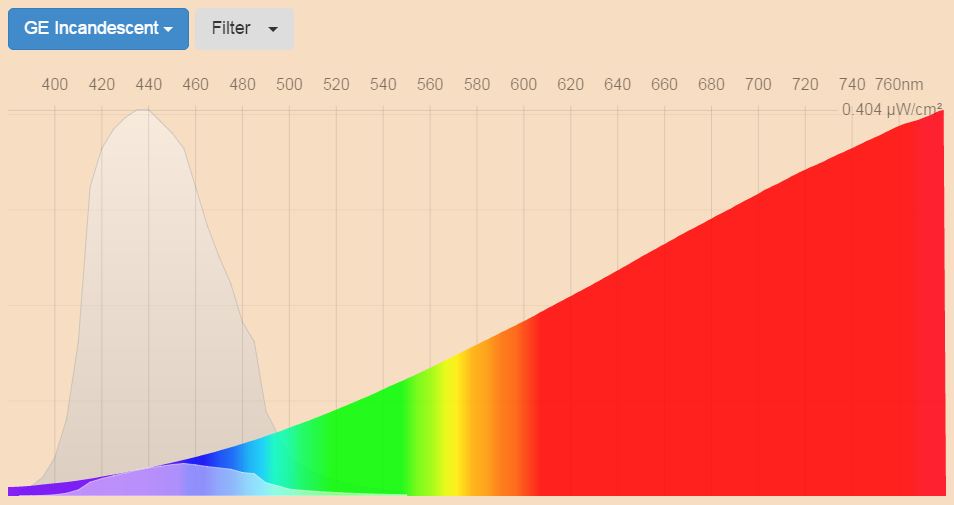

The table below should help you gain an understanding of how to evaluate blue filters. For demonstration purposes, an LED source (Thinkpad T440s at 6500K CCT) and a fluorescent source (Westcott CFL at 4500K CCT) were chosen. Click on images, to enlarge. Data source: fluxometer – many more options of filters, light sources and related data available there).

The filters are ordered roughly according to color distortion (from less to more) and mostly also from lower to greater blue light absorption. Note that the background on spectral diagrams changes: it approximately shows what white looks like through the given blue filter.

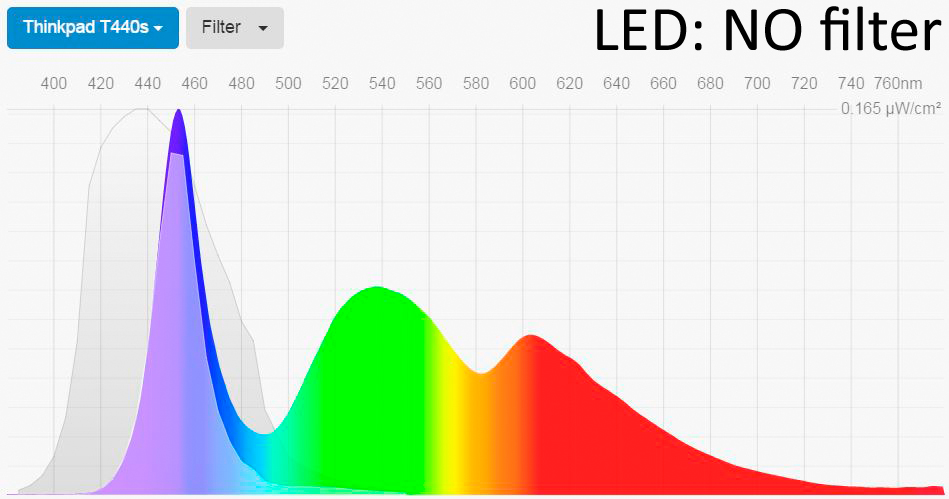

blue filter - no filter  Thinkpad T440s LED NO filter  westcott CFL no filter

Comment: Spectral power distribution (SPD) curves above are reproduced in the images below (black) for ease of comparison between unfiltered and filtered SPD.


Spectral transmittance iLLumiShield blue light filter screen protector  Thinkpad T440s LED iLLumiShield screen protector filtered  Not Applicable

Transmission: Near 460nm – High; Near 480nm – High; VLT: ~98%. Suitability: Minimal blue light protection. Filter: iLLumiShield Screen Protector.


Spectral transmittance Tech Armor RetinaShield blue light filter screen protector  Thinkpad T440s LED RetinaShield screen protector filtered  Not Applicable

Transmission: Near 460nm – High; Near 480nm – High; VLT: ~86%. Suitability: Minimal blue light protection. Filter: Tech Armor RetinaShield Blue Light Filter Screen Protector.

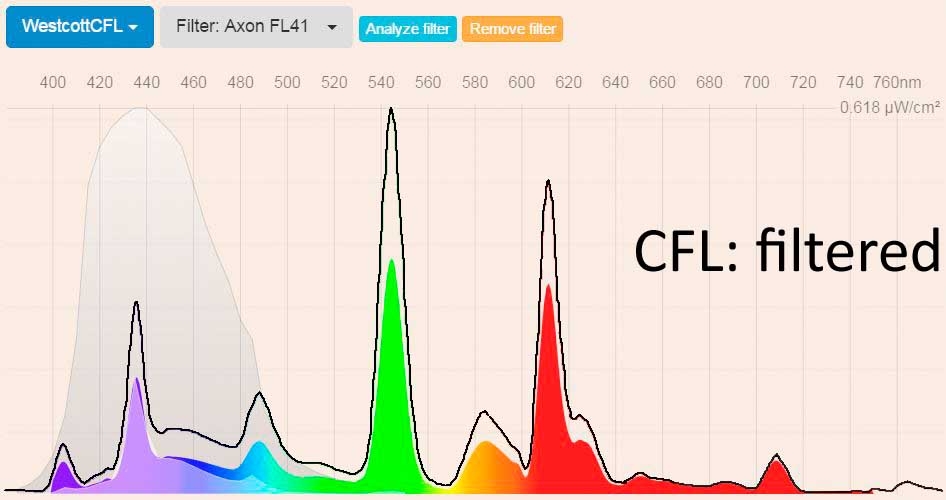

Spectral transmittance FL-41 Axon Optics blue light filter  Thinkpad T440s LED AXON FL-41 filtered  westcott CFL Axon FL-41 filtered

Transmission: Near 460nm – Moderate; Near 480nm – Moderate; VLT: ~62%. Suitability: For migraine, blepharospasm & fluorescent light sensitivity**; For moderate sleep disorders. Filter: Axon Optics FL-41 light sensitivity/ migrane relief glasses (indoor lens).

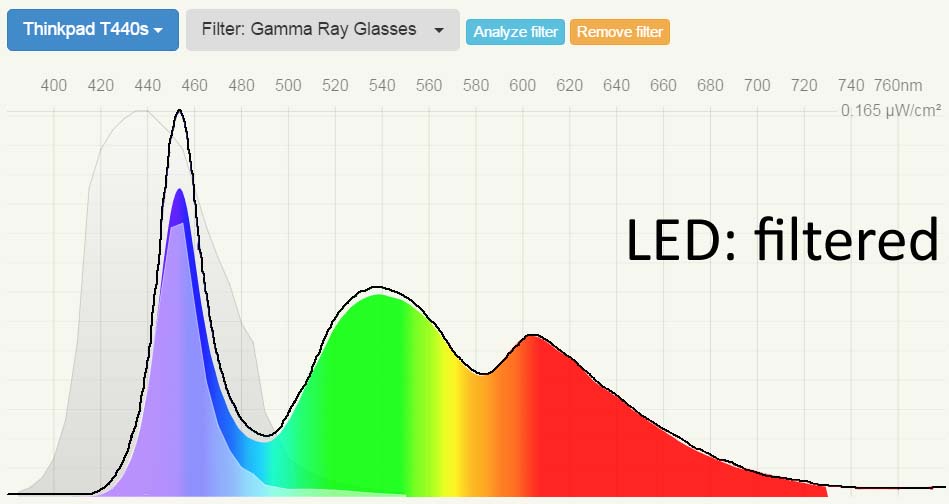

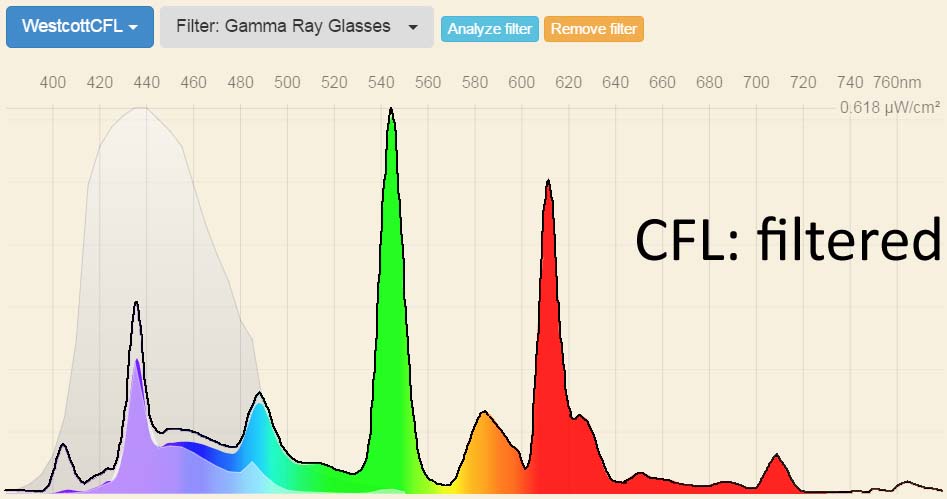

Spectral transmittance yellow Gamma Ray blue light filter  Thinkpad T440s LED Gamma Ray yellow filtered  westcott CFL Gamma Ray Glasses yellow filtered

Transmission: Near 460nm – Moderately-high; Near 480nm – High; VLT ~97%. Suitability: For non-glare/light sensitive; Not for sleep disorder. Filter: Gamma Ray computer/gaming glasses.


 Spectral transmittance yellow GUNNAR blue light filter  Thinkpad T440s LED GUNNAR PPK yellow filtered  westcott CFL Gunnar PPK yellow filtered

Transmission: Near 460nm – Moderate; Near 480nm – Moderately-high; VLT ~96%. Suitability: For mildly-glare/light sensitive; For minor sleep disorder. Filter: Gunnars (computer, gaming and prescription Rx).


Spectral transmittance yellow 3M blue light filter  Thinkpad T440s LED 3M yellow filtered  westcott CFL 3M yellow filtered

Transmission: Near 460nm – Low; Near 480nm – Moderate; VLT: ~92%. Suitability: For more glare/light sensitive; For minor sleep disorder. Filter: 3M safety glasses.

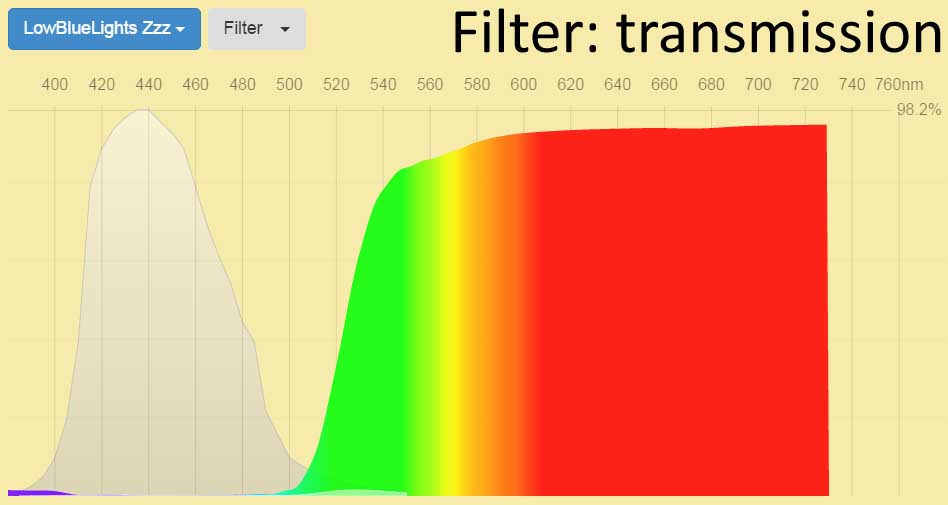

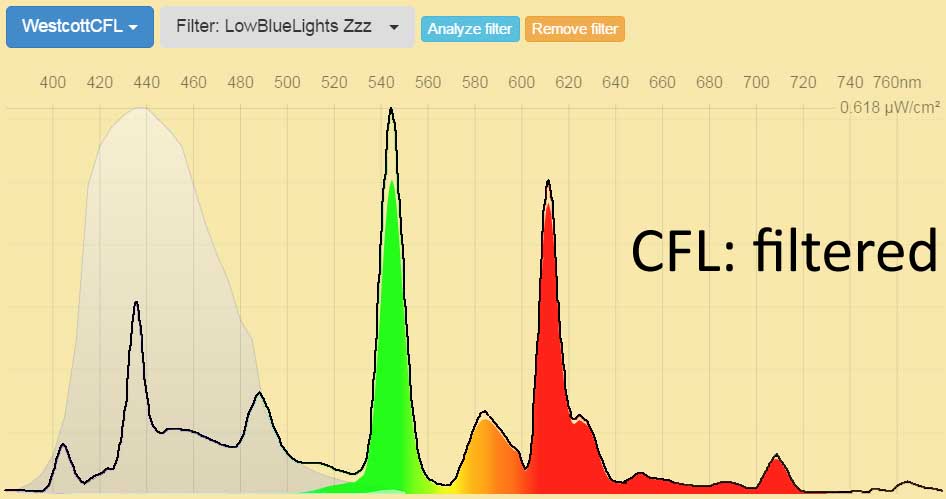

Spectral transmittance orange LowBlueLights blue light filter  Thinkpad T440s LED LowBlueLights orange filtered  westcott CFL LowBlueLights orange filtered

Transmission: Near 460nm – Complete; Near 480nm – High; VLT ~69%. Suitability: For more glare/light sensitive; For severe sleep disorders. Filter: LowBlueLights eyeglasses.

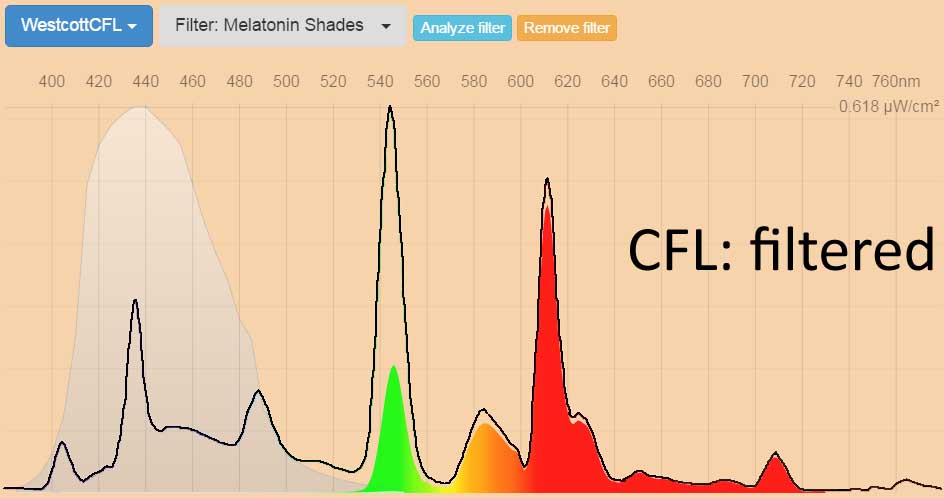

Spectral transmittance orange Melatonin Shades blue light filter  Thinkpad T440s LED Melatonin Shades orange filtered  westcott CFL Melatonin Shades orange filtered

Transmission: Near 460nm – Complete; Near 480nm – Complete; VLT ~47%. Suitability: For more glare/light sensitive; For severe sleep disorders. Filter: Melatonin Shades.


Spectral transmittance UVEX SCT Orange blue light filter  Thinkpad T440s LED UVEX SCT Orange filtered  westcott CFL UVEX SCT Orange filtered

Transmission: Near 460nm – Complete; Near 480nm – Complete; VLT ~51%. Suitability: For more glare/light sensitive; For severe sleep disorders. Filter: UVEX SCT Orange safety glasses.

————————————

** FL-41 tint was designed initially for fluorescent light sensitivity and has also been shown to alleviate Migraine and some Benign Essential Blepharospasm symptoms (Diagnosis, Pathophysiology, and Treatment of Photophobia; 2016). TheraSpecs (non-commission link) is another company that offers FL-41 tint on their migraine relief and fluorescent light sensitivity eyeglasses. You can also buy TheraSpecs on Amazon (commission link). Spectral transmittance may be found here.



For more options see:

best-blue-blockers

Best blue blockers in style and light filter specs,

or

Best blue light screen protectors

13 Blue light screen filters: Specs and recommendations




Concluding remarks

The best way to know for sure which filter might work best for you is to try. Since testing is rarely possible you might consider our blue light filter Tester:

Blue light filter Tester S

or recur to intuitive colorimetry (particularly if you feel that a blue filter doesn’t help you – your vision might be asking you to filter out different wavelengths to feel comfortable and avoid visual stress).



Blue filter color (yellow, amber, orange…) insufficiently describes its blue light filtering characteristics

The most obvious characteristic of blue filters is their color: yellow, amber, orange, red, brown… But, for the purpose of reducing blue light induced problems, despite appearing similar in terms of their color appearance, different filters may have dramatically different absorption characteristics (The visual effects of intraocular colored filters; 2012).



blue filter selectively filters more blue light than overall visual lightFilter blue light selectively: BLT < VLT

For some filters (particularly sunglasses) there is no other information provided but % of Blue Light Transmission (BLT) and % of Visual Light Transmission (VLT/LT). For example in the image the Grey filter’s BLT is only 15%! But its VLT is also 15% such that it only makes things look darker, without selectively reducing the intensity of blue light reaching your retina more than other wavelengths. Conversely, Amber/Melanin filter lets trough 5 times more light than blue light.

If you have nothing else but these two figures, stick to the rule BLT < VLT.



More blue filters to choose from

There are many more blue filters available on the market than the ones featured above. Several more options with significant information about their transmission properties are available in these posts: computer work related blue filters, outdoors and driving (including polarized sunglasses).
